6-12GPM

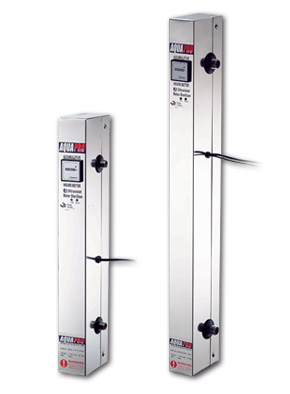

UV6GPM-V          UV12GPM-V


STANDARD SPECIFICATION



UV6GPM-V

UV12GPM-V

Dimension WxDxH (mm)

80X140X650

80X170X900

Electrical Volts

110/220V / 50/60HZ

110/220V / 50/60HZ

Flow Rate

6GPM

12GPM

In/out Port

1/2"

3/4"

UV Lamp (PC)

1

1

Quartz Sleeve (PC)

1

1

Lamp Failure Device

Yes

Yes

Ambient Temperature

2-40oC(36-104oF)

2-40oC(36-104oF)

Lamp Watts

24W

40W

Chamber

SS304

SS304

Accumulated Timer

Yes

Yes




12-36GPM

UV12GPM-VTM         UV24GPM-VTM         UV36GPM-VTM



STANDARD SPECIFICATION

Dimension WxDxH (mm)

340X320X1170 (12GPM)
340X320X1170 (24GPM)
440X370X1170 (36GPM)

Electrical Volts

110/220V / 50/60HZ

Flow Rate

12, 24, 36GPM

In/out Port

3/4", 1", 1-1/2"

UV Lamp (PC)

40Wx1, x2, x3

Quartz Sleeve (PC)

1, 2, 3PCS

Electric control Box

Yes

Leakage Circuit Breaker

Yes

No Fuse Breaker

Yes

Temp.Control & Fan

20-50oc, yes

Operation Indicators

Power / Temp
Normal / Fail

Chamber & Stand

SS304

Accumulated Timer

Yes

UV Light Monitor

Yes
