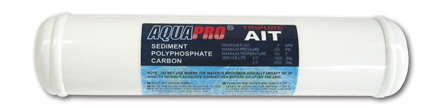

SEDIMENT/GAC/POLYPHOSPHATE, three in one






AIT-2 / AIT-25

DIA: 2.0" (52mm)LENGTH: 10.5"(262mm+-2mm)
DIA: 2.5" (64mm)LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
PIPE SIZE: 1/4"
SERVICE LIFE: 1500GAL.(AIT-2)
SERVICE LIFE: 2500GAL.(AIT-25)
SHIPPING PACKAGE:
25PCS/CARTON/28x28x27cm 10KGS(AIT-2)
24PCS/CARTON/39x32x28cm 13.5KGS(AIT-25)



INLINE SEDIMENT FILTER, multi-layer, depth filtration, stops sand, dirt, and other solid particles.

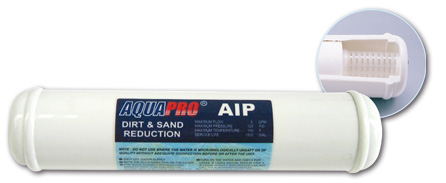

AIP-2 / AIP-25

DIA: 2.0" (52mm)LENGTH: 10.5"(262mm+-2mm)
DIA: 2.5" (64mm)LENGTH: 11"(280mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
NOMINAL FILTRATION: 5 MICRON
PIPE SIZE: 1/4"
SHIPPING PACKAGE:
25PCS/CARTON/28x28x27cm 6KGS(AIP-2)
24PCS/CARTON/39x32x28cm 10KGS(AIP-25)

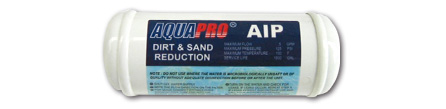

AIP-2S/ AIP-25S

DIA: 2.0" (52mm)LENGTH: 6.5"(168mm+-2mm)
DIA: 2.5" (64mm)LENGTH: 6.5"(168mm+-2mm)
MAX FLOW: 0.75GPM
MAX PRESSURE(PSI): 125PSI
MAX TEMPERATURE: 100oF
NOMINAL FILTRATION: 5 MICRON
PIPE SIZE: 1/4"
SHIPPING PACKAGE:
60PCS/CARTON/28x28x27cm 12KGS(AIP-2S)
40PCS/CARTON/39x32x28cm 12KGS(AIP-25S)

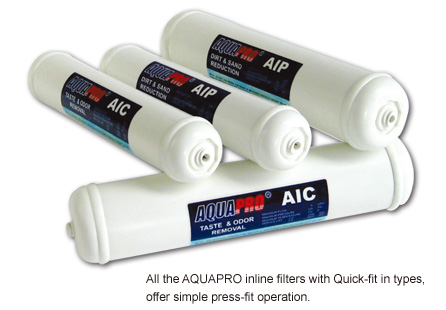

QUICK FIT-IN TYPES
