AQUAPRO UV STANDARD
FEATURES
|
|
| |
|
• Heavy duty
stainless steel pressure vessel
• Heavy duty quartz sleeve
• High output, hard glass UV lamps for
maximum efficiency
• CE ballast with lamp failure indicator
and warning buzzer
• Ceramic end cap of UV lamp
• 30000mic. watt sec/cm2 at energy of
253.7nm wave length
|
• Working pressure
125PSI
• Low power consumption
• 9000 hours lamp life (approx. 1 year
of use)
• 110/220V, 50HZ/60HZ
• Vertical or Horizontal installation
• UV light Monitor available
|
|
|
|
| |

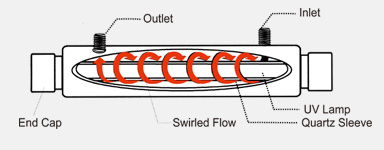

PATENTED SWIRLED FLOW
DESIGN
|
|
| |
|
|
| |
1-2GPM
|
|
|
|
|
|
|
UV1GPM
|
|
|
|
STANDARD
SPECIFICATION
|
|
Dimension LxWxD (mm)
|
278X80X80
|
|
Electrical Volts
|
110/220V /
50/60HZ
|
|
Flow Rate
|
2GPM
|
|
In/out Port
|
1/4"
|
|
UV Lamp (PC)
|
1
|
|
Quartz Sleeve (PC)
|
1
|
|
Lamp Failure Device
|
YES
|
|
Ambient Temperature
|
2-40oC(36-104oF)
|
|
Lamp Watts
|
14W
|
|
Chamber
|
SS304
|
|
|
|
|
| |
6GPM
|
|
| |
 |
|
UV6GPM-H
|
|
|
|
UV6GPM
STANDARD
SPECIFICATION
|
|
Dimension LxWxD (mm)
|
560X80X80 (UV6GPM-H)
|
|
Electrical Volts
|
110/220V /
50/60HZ
|
|
Flow Rate
|
6GPM
|
|
In/out Port
|
1/2"
|
|
UV Lamp (PC)
|
1
|
|
Quartz Sleeve (PC)
|
1
|
|
Lamp Failure Device
|
Yes
|
|
Ambient Temperature
|
2-40oC(36-104oF)
|
|
Lamp Watts
|
24W
|
|
Chamber
|
SS304
|
|
|
|
|
| |
12GPM
|
|
| |
 |
|
UV12GPM-H
/
HT
/ HTM
|
|
|
|
UV12GPM
STANDARD
SPECIFICATION
|
|
Dimension LxWxD (mm)
|
900X170X89 (UV12GPM-H)
900X190X160
(UV12GPM-HT, HTM)
|
|
Electrical Volts
|
110/220V /
50/60HZ
|
|
Flow Rate
|
12GPM
|
|
In/out Port
|
3/4"
|
|
UV Lamp (PC)
|
1
|
|
Quartz Sleeve (PC)
|
1
|
|
Lamp Failure Device
|
Yes
|
|
Ambient Temperature
|
2-40oC(36-104oF)
|
|
Lamp Watts
|
40W
|
|
Chamber
|
SS304
|
|
Accumulated Timer
|
UV12GPM-HT, HTM
|
|
UV Light monitor
|
UV12GPM-HTM
|
|
|
|
|
|
24GPM
|
|
| |
 |
|
UV24GPM-H
/ HT
/
HTM
|
|
|
|
UV24GPM
STANDARD
SPECIFICATION
|
|
Dimension LxWxD (mm)
|
900X190X160 (UV24GPM-H)
900X240X160
(UV24GPM-HT, HTM)
|
|
Electrical Volts
|
110/220V /
50/60HZ
|
|
Flow Rate
|
24GPM
|
|
In/out Port
|
1"
|
|
UV Lamp (PC)
|
2
|
|
Quartz Sleeve (PC)
|
2
|
|
Lamp Failure Device
|
Yes
|
|
Ambient Temperature
|
2-40oC(36-104oF)
|
|
Lamp Watts
|
40Wx2
|
|
Chamber
|
SS304
|
|
Accumulated Timer
|
UV24GPM-HT, HTM
|
|
UV Light monitor
|
UV24GPM-HTM
|
|
|
|
|
|
36GPM
|
|
| |
 |
|
UV36GPM-HT
/
UV36GPM-HTM
|
|
|
|
UV36GPM
STANDARD
SPECIFICATION
|
|
Dimension LxWxD (mm)
|
980X230X280
|
|
Electrical Volts
|
110/220V /
50/60HZ
|
|
Flow Rate
|
36GPM
|
|
In/out Port
|
1 1/2"
|
|
UV Lamp (PC)
|
3
|
|
Quartz Sleeve (PC)
|
3
|
|
Lamp Failure Device
|
Yes
|
|
Ambient Temperature
|
2-40oC(36-104oF)
|
|
Lamp Watts
|
40Wx3
|
|
Chamber
|
SS304
|
|
Accumulated Timer
|
36GPM-HT, HTM
|
|
UV Light monitor
|
36GPM-HTM
|
|
|
|
|
|
|
|
|
|
|
|
|
