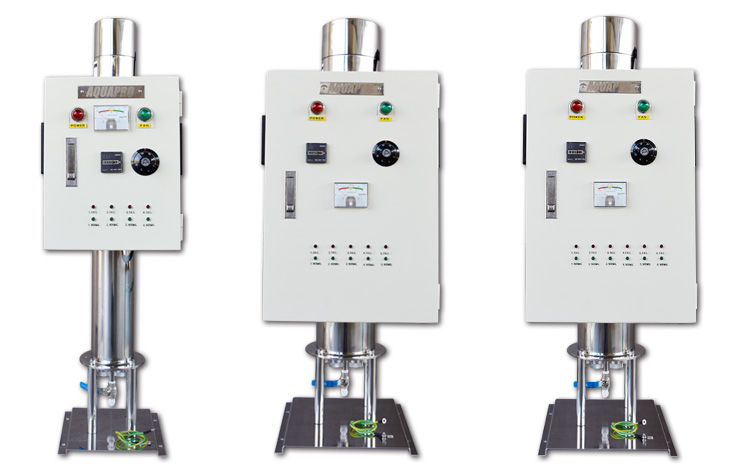

48GPM-72GPM STERILZER-VERTICAL
TYPE
|
 |
|
UV48GPM-VTM |
UV60GPM-VTM |
UV72GPM-VTM |
|
|
|
|
| |
|

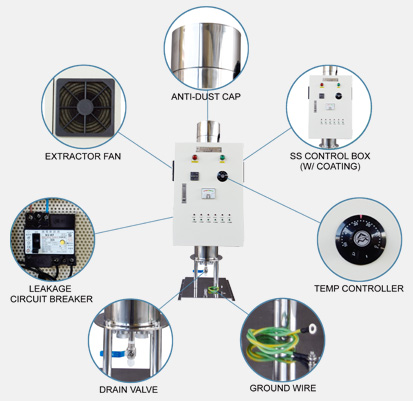

NOTICED DETAILS:
|
 |
|
|
STANDARD
SPECIFICATION
|
Dimensionl WxDxH (mm) |
440X360X1170 (48GPM)
550X470X1170 (60GPM)
550X470X1170 (72GPM) |
Electrical Volts |
110/220V /
50/60HZ |
Flow Rate |
48, 60, 72GPM |
In/out Port |
1 1/2", 2", 2"FLANGE |
UV Lamp (PC) |
40Wx4, x5, x6 |
Quartz Sleeve (PC) |
4, 5, 6PCS |
Electric control Box |
Yes |
Leakage Circuit Breaker |
Yes |
No Fuse Breaker |
Yes |
Temp.Control & Fan |
20-50oc, yes |
Operation Indicators |
Power / Temp
Normal / Fail |
Chamber & Stand |
SS304 |
Accumulated Timer |
Yes |
UV Light Monitor |
Yes |
|
|
|
|
| |
|
|
|
|
|
|
|
