Top & Bottom 4" open, 13"-
40"Dia tank
|
|
Bottom open 4", 13"- 48"Dia tank |
|
 |
|
 |
|
|

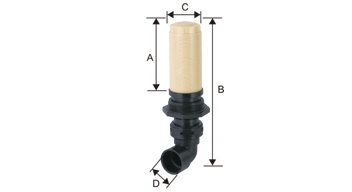

V-DIF-30L
/ 36L-SD |
|
V-DIS6-B16L~48L-SD |
|
|
Top & Bottom mount diffuser -
Side mount
|
|

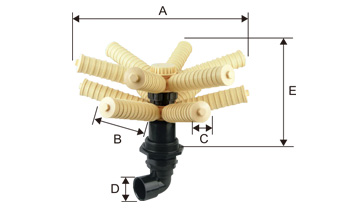

6 ports bottom mount distributor
- High flow
|
|
|
Model
No. |
Dimension
(mm) |
Tank Dia |
|
A |
B |
C |
D |
|
V-DIF-30L-SD |
242 |
472 |
88 |
63/60.3 |
30"-40" |
|
V-DIF-36L-SD |
310 |
540 |
88 |
63/60.3 |
36"-40" |
|
|
|
Model
No. |
Dimension
(mm) |
Tank
Dia |
|
A |
B |
C |
D |
E |
|
V-DIS6-B16L-SD |
260 |
82 |
53 |
63/60.3 |
280 |
13"-16" |
|
V-DIS6-B18L-SD |
370 |
136 |
53 |
63/60.3 |
280 |
18"-21" |
|
V-DIS6-B24L-SD |
450 |
182 |
53 |
63/60.3 |
280 |
24" |
|
V-DIS6-B30L-SD |
620 |
260 |
53 |
63/60.3 |
280 |
30" |
|
V-DIS6-B36L-SD |
710 |
330 |
53 |
63/60.3 |
280 |
32"-36" |
|
V-DIS6-B48L-SD |
930 |
410 |
53 |
63/60.3 |
280 |
48" |
|
|
|
|
| |
Top open 4" - 8", 36"-
60"Dia tank
|
|
| |
 |
|
 |
|
|
V-DIS6D-B40L / B48L |
|
V-DIS6D-B40L / B48L-SD |
|
|
12 ports bottom distributor -
High flow
|
|
12 ports bottom distributor -
Side mount - High flow
|
|
|
Model
No. |
Dimension
(mm) |
Tank Dia |
|
A |
B |
C |
D |
|
V-DIS6D-B40L |
710 |
330 |
53 |
63 |
36"-40" |
|
V-DIS6D-B48L |
930 |
410 |
53 |
63 |
48"-60" |
|
|
|
Model
No. |
Dimension
(mm) |
Tank Dia |
|
A
|
B
|
C
|
D
|
E
|
|
V-DIS6D-B40L-SD |
710
|
330
|
53
|
63/60.3
|
360
|
36"-40" |
|
V-DIS6D-B48L-SD |
930
|
410
|
53
|
63/60.3
|
360
|
48"-60" |
|
|
|
|
|
|
|
Thread closure - ABS
|
 |
|
 |
|
 |
|
 |
| V-TC-2.5 |
|
V-TC-4 |
|
V-TC-6 |
|
V-TC-6FLG |
|
2.5"
|
|
4"
|
|
6"
|
|
6" FLANGE
|
|
|
|
|
|
Thread adapters - ABS
|
 |
|
 |
|
 |
| V-TA-4 |
|
V-TA-6 |
|
V-TA-6FLG |
|
4"-2.5"
|
|
6"-4"
|
|
6"-4" FLANGE
|
|
|
|
|
|
|
|
|
|
|
