Top Open 2.5", 6"-12"Dia tank



Top Open 2.5", 8"-16"Dia tank

V-DIS-T1   V-DIS-B1   V-DIS-T2 (T2-C)   V-DIS-B2

Top Distributor
1" for 6"-12"dia tank



Bottom Distributor
1" for 6-12"dia tank



Top Distributor
1" for 8"-16"dia tank



Bottom Distributor
1" for 8"-16"dia tank





Top Open 2.5",
8"-20"Dia tank



Top Open 4",
12"- 36"Dia tank


V-DIS-T3   V-DIS-B3   V-DIS-B   V-DIS-T4

Top Distributor
1" for 8"-20"dia tank



Bottom Distributor
1" for 8"-20"dia tank



Bottom Distributor
Application: Free style 1 ton/piece



Top Distributor
For tank 12"-36", 48.5 / 50mm




Top Open 4", 12"- 36"Dia tank

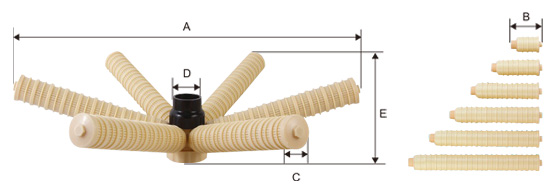

V-DIS6-B12~36 / V-DIS6-B16L~48L





6 ports bottom distributor - Regular flow



6 ports bottom distributor - High flow


Model No.  Dimension (mm)  Tank Dia
A B C D E
V-DIS6-B12 260  82 35 48.5/50  110  12"-16"
V-DIS6-B18 370  136 35 48.5/50  110  18"-21"
V-DIS6-B24 460  182 35 48.5/50  110  24"
V-DIS6-B30  620  260 35 48.5/50  110  30"
V-DIS6-B36 710  305 35 48.5/50  110  32"-36"

Model No.  Dimension (mm)  Tank Dia
A B C D E
V-DIS6-B16L 260  82 53 48.5/50  160  12"-16"
V-DIS6-B18L 370  136 53 48.5/50  160  18"-20"
V-DIS6-B24L 450  182 53 48.5/50  160  24"
V-DIS6-B30L 620  260 53 48.5/50  160  30"
V-DIS6-B36L 710  330 53 48.5/50  160  36"-40"
V-DIS6-B48L 930  410 53 48.5/50  160  48"
